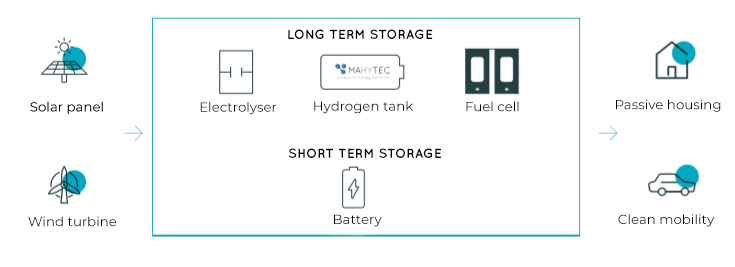

It generates and stores electricity when solar or wind power is available and it provides clean electricity when the other power sources are not available.

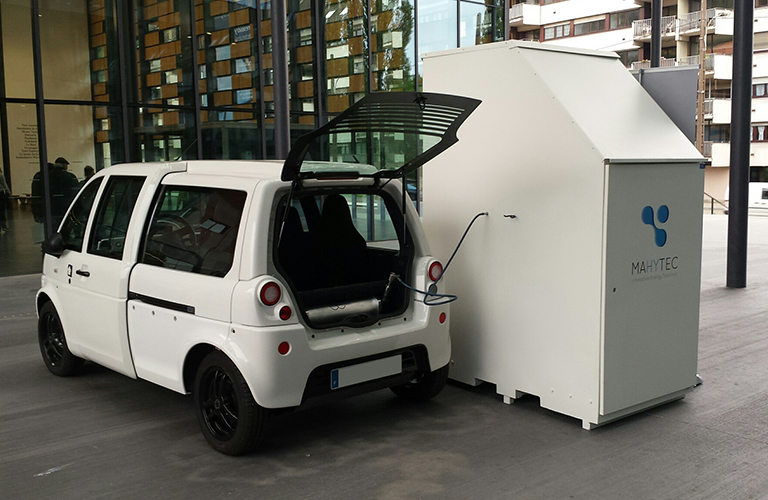

Due to its powerful battery unit and the large H2 tank it is able to supply electricity for several days. It can also provide hydrogen for a small H2 powered electric car.
Coupled with batteries, hybrid solution with hydrogen is economically viable and offer higher performance.
For sites where long periods are without solar or wind energy, we can propose more powerful models since it comes in different sizes to cover every customer needs.
SECURITHY is the perfect solution for off-grid, isolated sites and passive houses to manage their energy consumption.
With SECURITHY, you have the possibility to go green and stay out of the grid.
Thanks to its know-how in the field of hydrogen storage, MAHYTEC offers its customers a range of products including the entire hydrogen chain, in order to secure the access to a clean and sustainable energy. SECURITHY perfectly fits into the energy transition and passive housing.
Application : Educational full-scale systems
MAHYTEC provides a complete energy solution for academic purpose in high-schools. These bivalent stations include hydrogen production through an electrolyser, hydrogen storage in two different types of tanks and electrical conversion as well as monitoring of the system. It is also equipped with a small hydrogen vehicle. Five systems have been deployed in East of France.
| HYDROGEN PRODUCTION | |
| ELECTROLYSER TYPE | PEM |
| HYDROGEN PRODUCTION RATE | 1Nm³/h |
| OUTPUT PRESSURE | 50bar |
| HYDROGEN PURITY | 99.9995% |
| POWER | 5.5kW |
| HYDROGEN STORAGE | |
| HYDROGEN TANK | Type IV – Polymer liner reinforced with composite material |
| MAXIMUM WORKING PRESSURE | 60bar |
| TOTAL MASS OF HYDROGEN STORED AT 60bar (15°C) | 8.4kg |
| VALVES | PRV and TPRD |
| INSTRUMENTATION | Standard P&ID, can be adapted to customers’ requests |
| FUEL CELL | |
| NONIMAL POWER | 3.6kW |
| MAXIMAL POWER | 3.2kW |
| BATTERIES | |
| TYPE | Lead-gel |
| CAPACITY | 30kW |

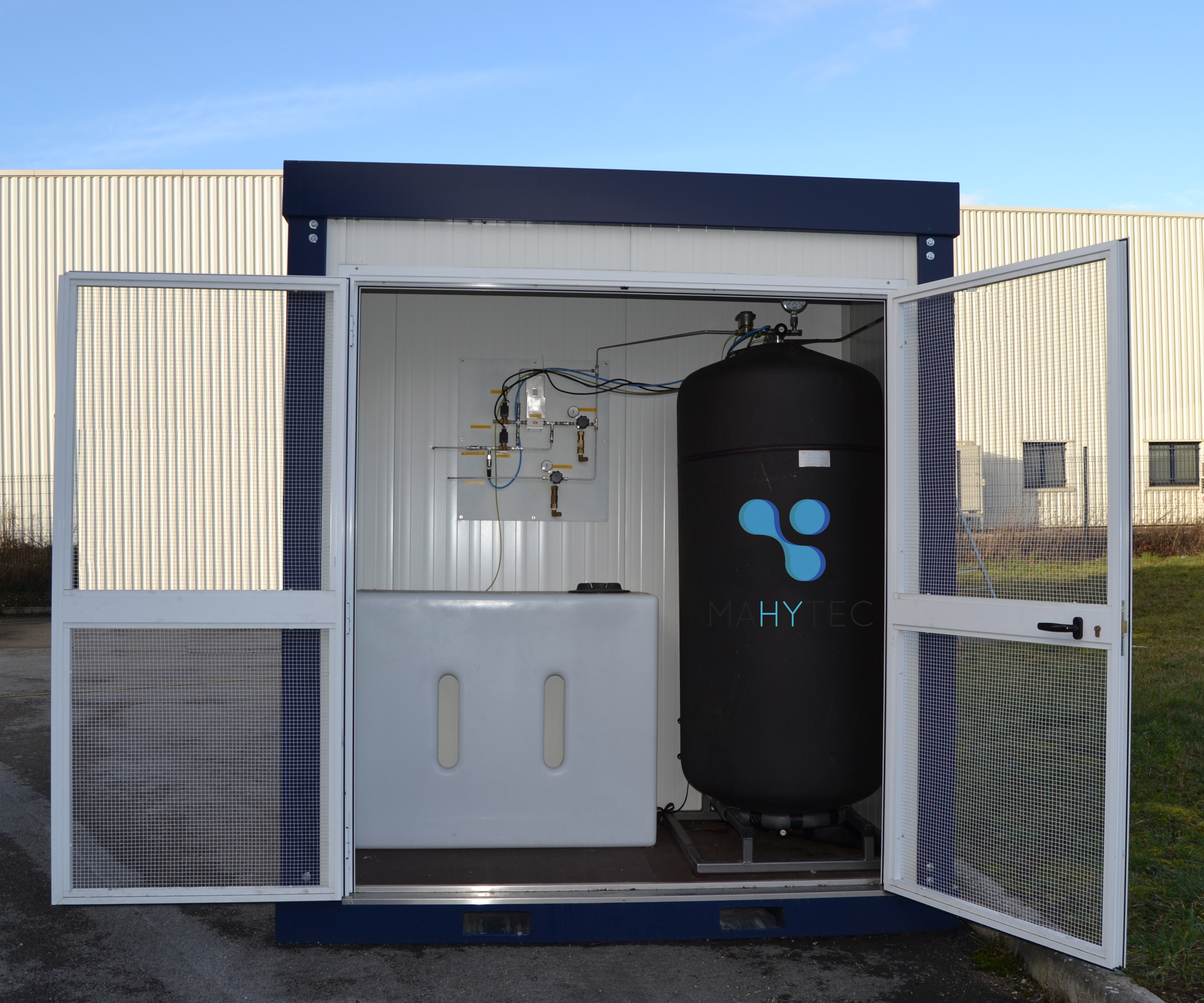

| CONTAINER 8ft | |
| DIMENSIONS (cm) | 2.42 x 2.42 x Height 2.72 (2.40 inside) |
| HYDROGEN STORAGE | |
| HYDROGEN TANK | Type IV polymer liner with composite materials |
| MAXIMUM WORKING PRESSURE (PS) | 60bar |
| CERTIFICATION | PED |
| VALVES | PRV and TPRD |
| QUADRHY | |||
| SIZES | 8ft | 20ft | 40ft |
| TOTAL MASS OF STORED HYDROGEN AT 60bar (15°C) | 16.8kg | 50.4kg | 100kg |
| RESTORED ENERGY AFTER A FUEL CELL WITH AN EFFICIENCY OF 50% | 275kWh | 830kWh | 1650kWh |
| DIMENSIONS (m) | 2.42*2.42*2.72 | 5.90*2.35*2.39 | 12.05*2.35*2.39 |
| INSTRUMENTATION (P&ID) | Can be adapted to customers’ requests |
QUADRHY CAN BE ADAPTED TO YOUR NEEDS
After having developped our system SECURITHY, who allows the production of electricity thanks to hydrogen, MAHYTEC has developped a container to store up to 100kg of hydrogen.
This container is modular in different sizes, and can be linked to renewables energy sources, such as wind turbine or solar panels, to allow the energy converstion into electricity.
