Solid hydrogen storage

MAHYTEC offers a wide range of hydrogen solid storage solutions. The implemented technology relies on the use of hydrides, a metallic powder which absorbs and stores significant hydrogen quantity at low pressure and room temperature. Thanks to our complete control of the process of induction heating, we guaranty on-demand solutions as well as materials quality. Single unit or assembled, our storage solutions can satisfy all needs for most of the possible applications.

 Thanks to the control of the induction melting process, we secure a solution used to the needs as well as the quality of the material. Alone or assembled, our storage solutions can satisfy all your needs.

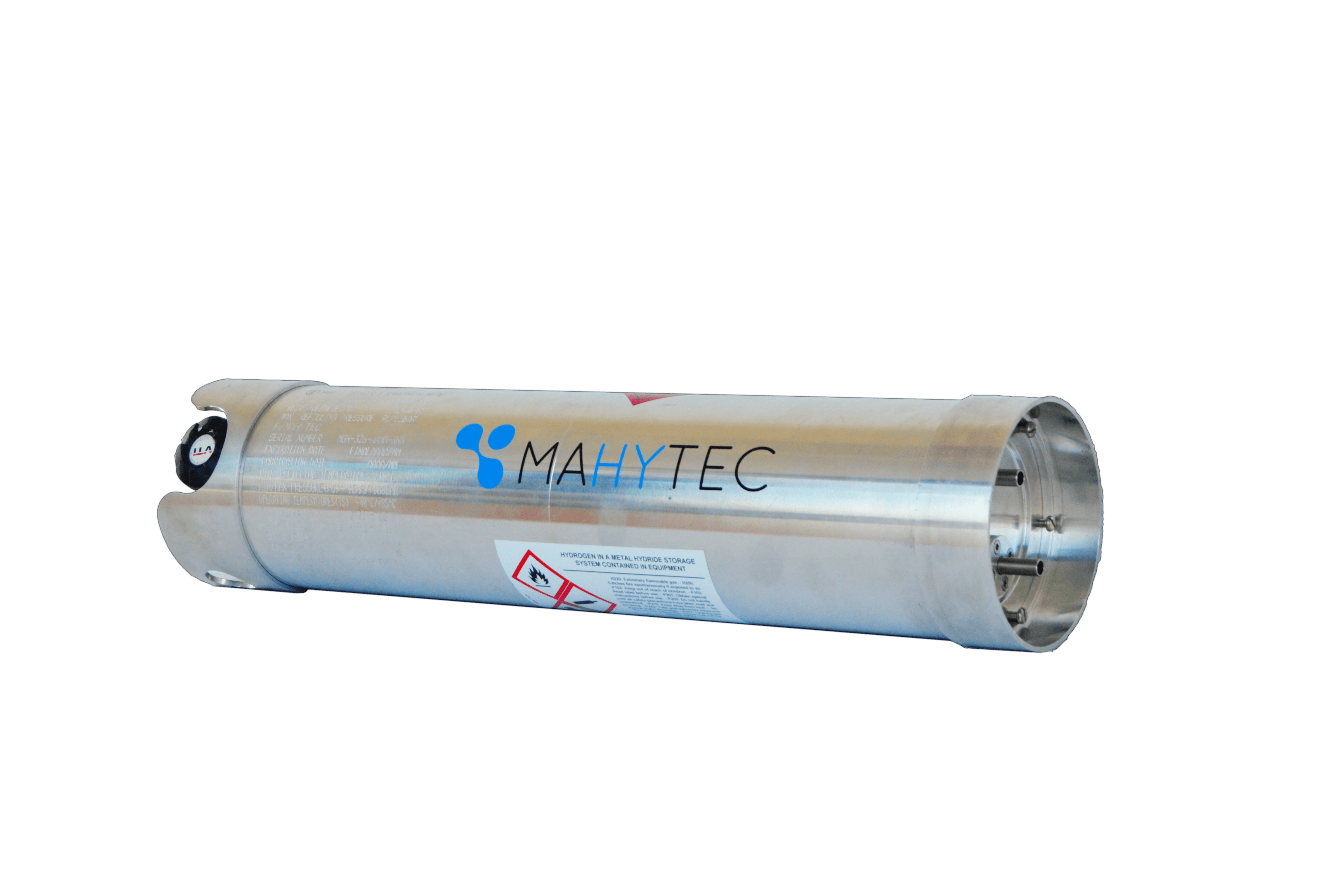

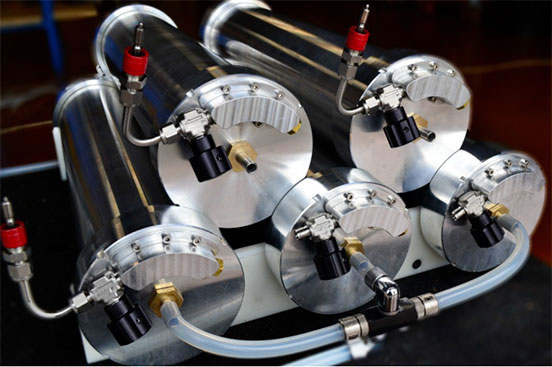

Product: MHT-Magnum

This cylindrical tank has an integrated heat exchanger, which allows accelerated cycles for filling/discharging. It stores 2000Nl, i.e about 200g of hydrogen.
SERVICE CONDITIONS
HYDROGEN CAPACITY STORAGE2100NI (+/+ 100)
TEMPERATURE OF USEFrom 10°C to 85°C
TEMPERATURE OF STORAGEFrom -40°C to 85°C
MINIMUM WORKING PRESSURE-1barg
MAXIMUM WORKING PRESSURE100barg
MAXIMUM REFILLING PRESSURE15barg
MINIMUM REFILLING TEMPERATURE10°C
REFILLING TIME WITH COOLING2hours (+/- 30minutes)
DIMENSIONS
MASS OF EMPTY TANK≈22.8kg
DIMENSIONS (cm)Ø14.4 x 63.1
MATERIALS
HYDRIDE TYPEFeTi
BODY MATERIALAluminium Alloy
REGULATIONS TEST
TPRDOpening temperature 110°C (+/- 10°C)
VALVEISO 10297
Hydrostatic test pressure143bar
Approved according toISO16111:2008 - PED 2014/68/EU & TPED 2010/35/EU
Download the datasheet

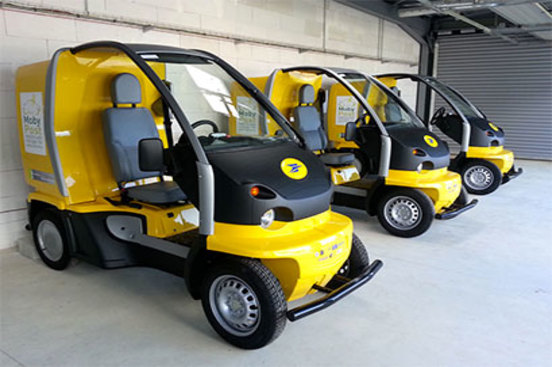

Application: Mobypost
Mobypost is an European project aimed at experiencing two fleets of vehicles with zero CO2 emissions on two mail delivery stations from La Poste
MAHYTEC contributes by providing its expertise and the supply of onboard solid storage solutions.
MAHYTEC is also involved in the design and the implementation of two refilling hydrogen station.
Financed up to 50% by Europe, this project was originally planned between 2011 and 2013 but has been extended till 2015.
More information

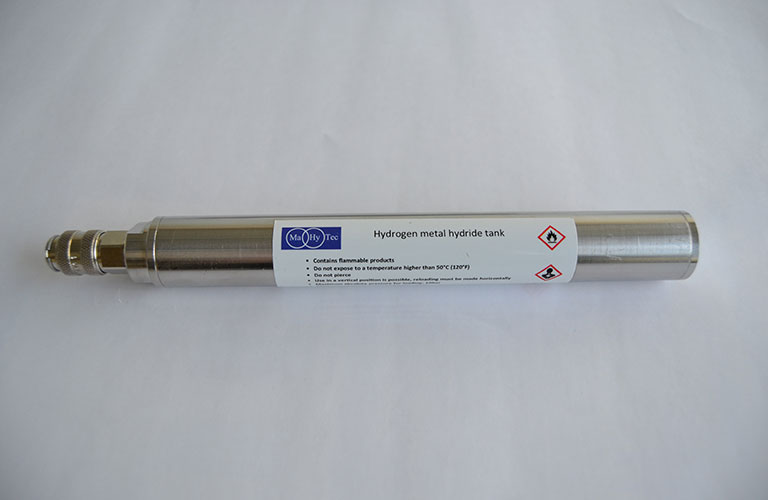

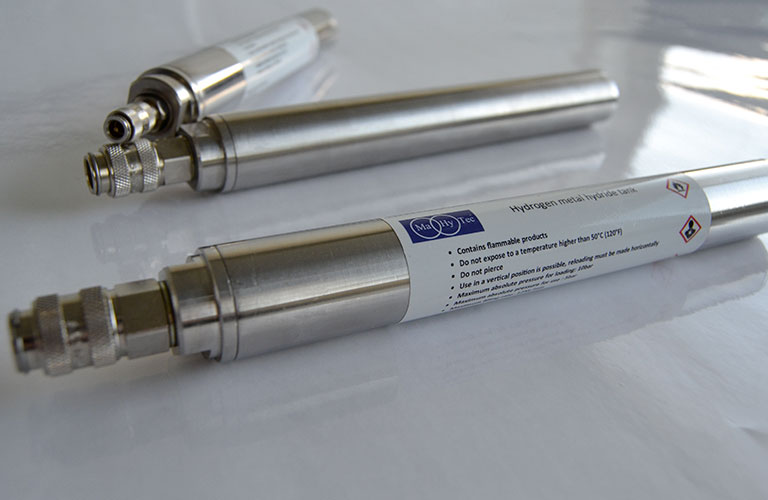

Product : MHT-C20

This cylindrical tank stores 20Nl i.e about 2g of hydrogen. It is ideal for powering your mobile and nomadic applications.



For bigger volume: 40Nl, 80Nl and 150Nl, please contact us

SERVICE CONDITIONS
HYDROGEN STORAGE CAPACITY20NI
TEMPERATURE OF USEFrom 10°C to 50°C
TEMPERATURE OF STORAGEFrom -40°C to 50°C
MINIMUM WORKING PRESSURE-1barg
MAXIMUM WORKING PRESSURE20barg
MINIMUM REFELLING TEMPERATURE10°C
MAXIMUM REFILLING PRESSURE10barg
DELIVERY PRESSURE AT 25°C1barg (+/- 0.5bar)
REFELLING TIME WITH COOLING10minutes
DIMENSIONS
MASS OF EMPTY TANK535g
DIMENSIONS
MATERIALS
HYDRIDE TYPELaNi5
BODY MATERIAL316L Steel
REGULATION TEST
QUICK CONNECTORLegris G1/8" (Ref 9287 20 10) / Other on request
Download the datasheet

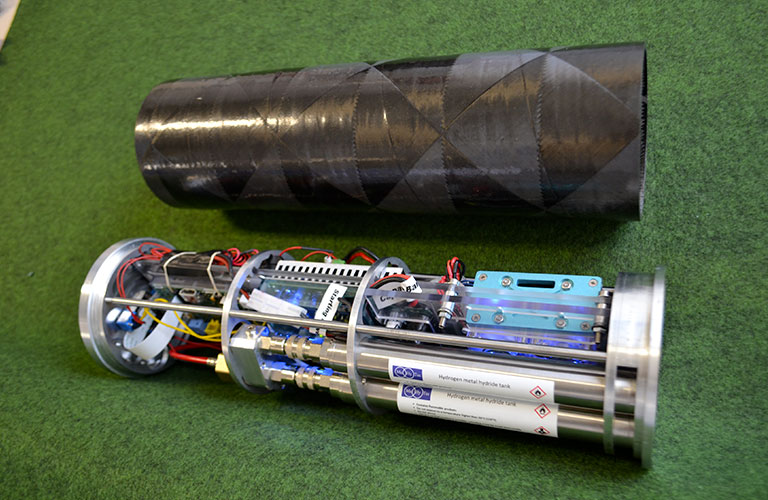

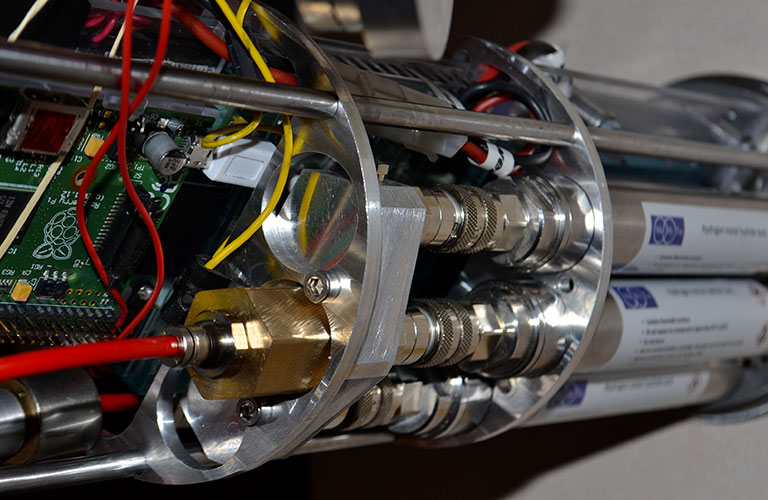

Application: Autonomous camera
This transportable monitoring system consists of a camera with integrated Wi-Fi that can be connected to an external computer.
Equipped with a fuel cell and three hydride tanks, this system provides image transmission for 5 hours.
Protected by a carbon tube, this system is effective even in extreme environments.
Other versions of this system with higher powers are possible.
Download the datasheet

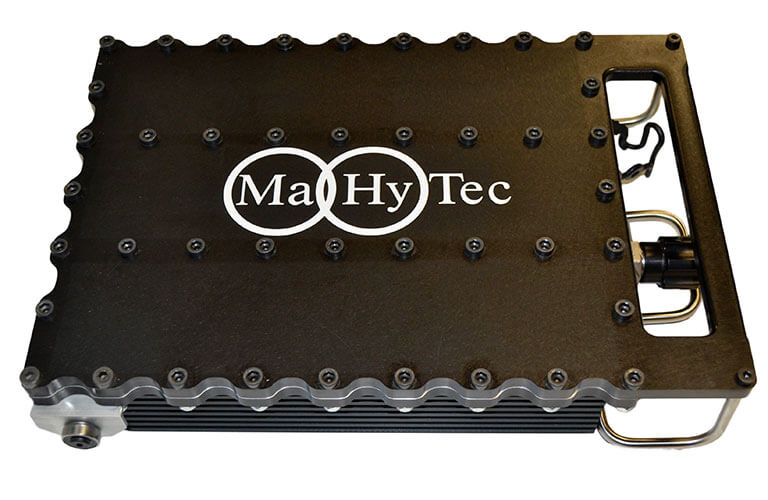

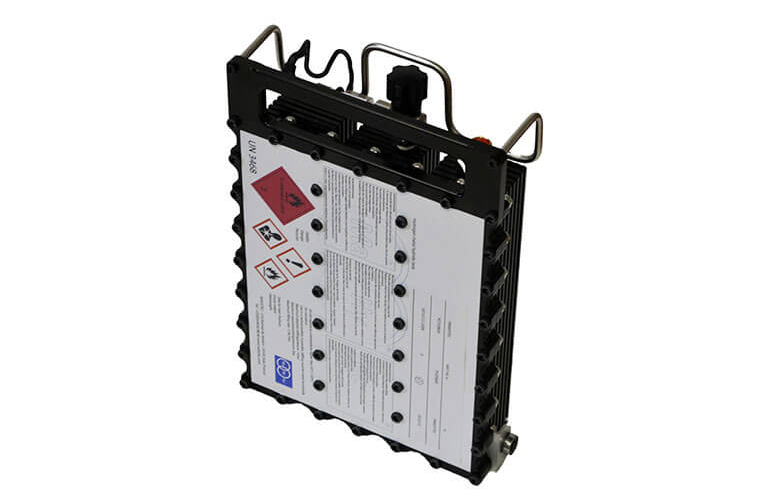

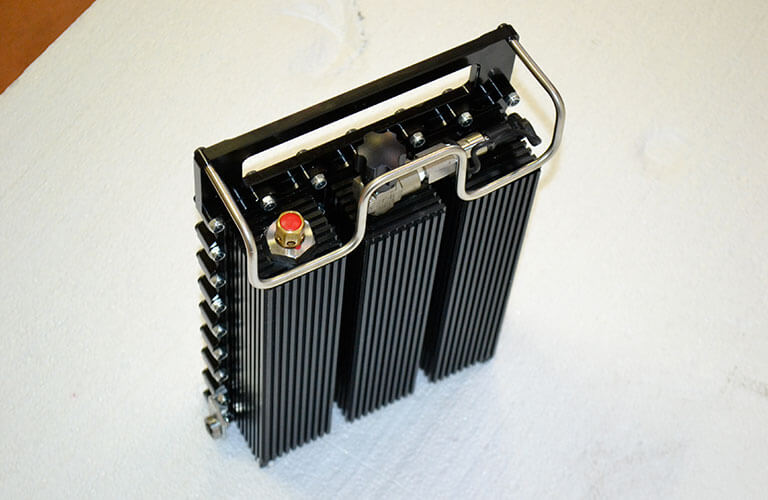

Product : MHT-Hycube

This certified tank, in a prismatic shape, is designed to optimize thermal exchanges. It can store 850Nl, i.e about 85g of hydrogen.
SERVICE CONDITIONS
MASS OF HYDROGEN STORED85g (+/- 10g)
TEMPERATURE OF USEFrom 10°C to 50°C
TEMPERATURE OF STORAGEFrom -40°C to 50°C
MAXIMUM WORKING PRESSURE5bar
ABSOLUTE WORKING PRESSURE AT 25°C2bar (+/- 0.5bar)
MAXIMUM REFILLING PRESSURE10bar
REFILLING TIME WITH COOLING10bar
DIMENSIONS
MASS OF EMPTY≈ 12.800kg
MATERIALS
HYDRIDE TYPELaNi5
BODY MATERIALAluminum alloy
REGULATION TEST
TPRDOpening temperature 70°C
VALVEISO 10297
APPROVED ACCORDING TOISO 16111:2008 standard
Download the datasheet

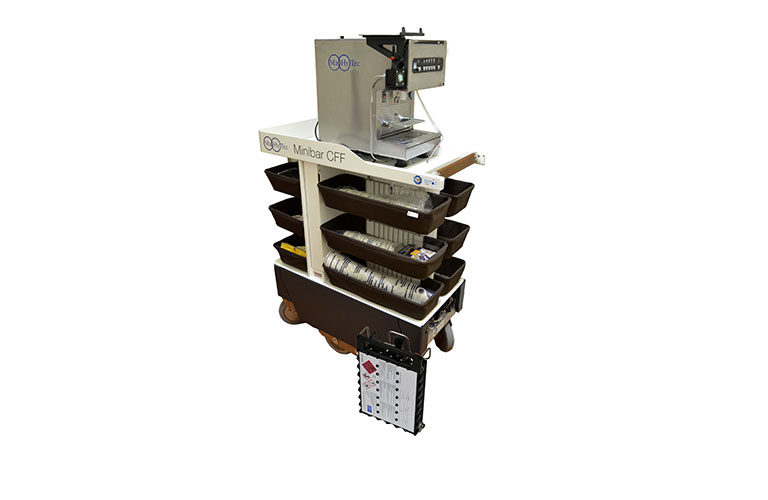

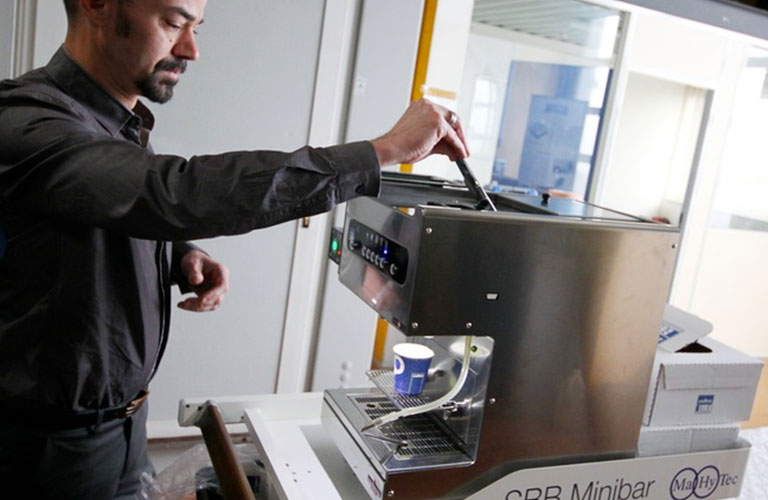

Application: SBB Minibar
In 2013, the integrator CEKA on behalf of the Swiss company ELVETINO, which handles the trolleys of the Swiss railway company SBB, finds in MAHYTEC the reliable interlocutor to develop a H2 storage solution able to meet the challenge: increase the energy autonomy for a minibar available during the whole trip.
The H2 version of these minibars was implemented in April 2014 and has eliminated the autonomy and power issue of the original system with batteries.
Press article in French

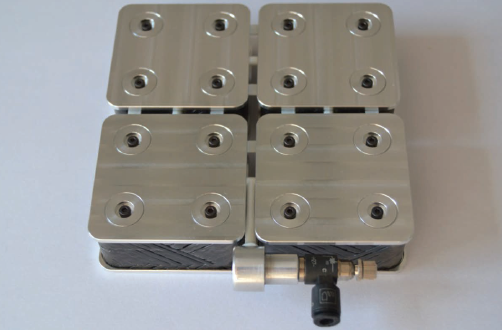

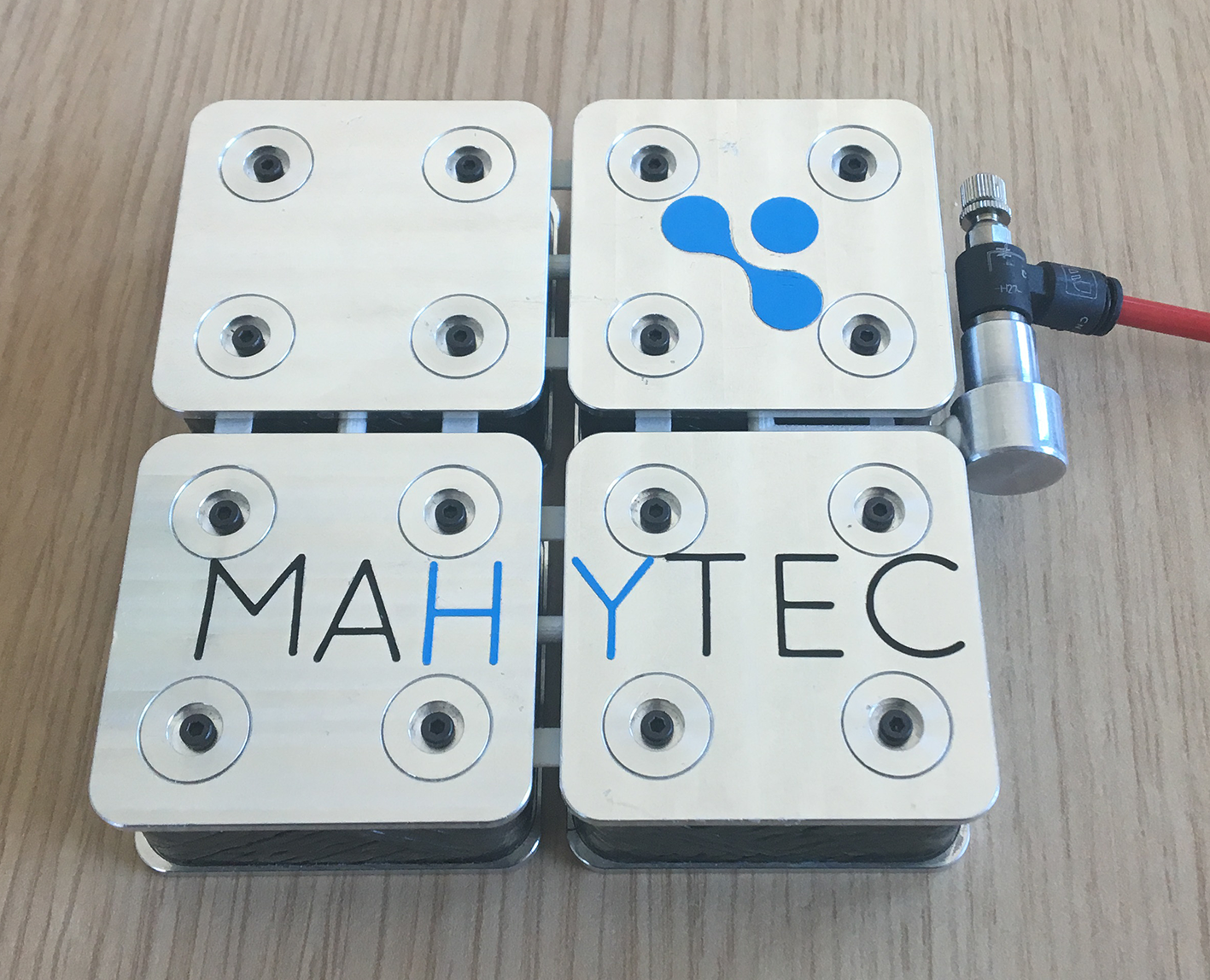

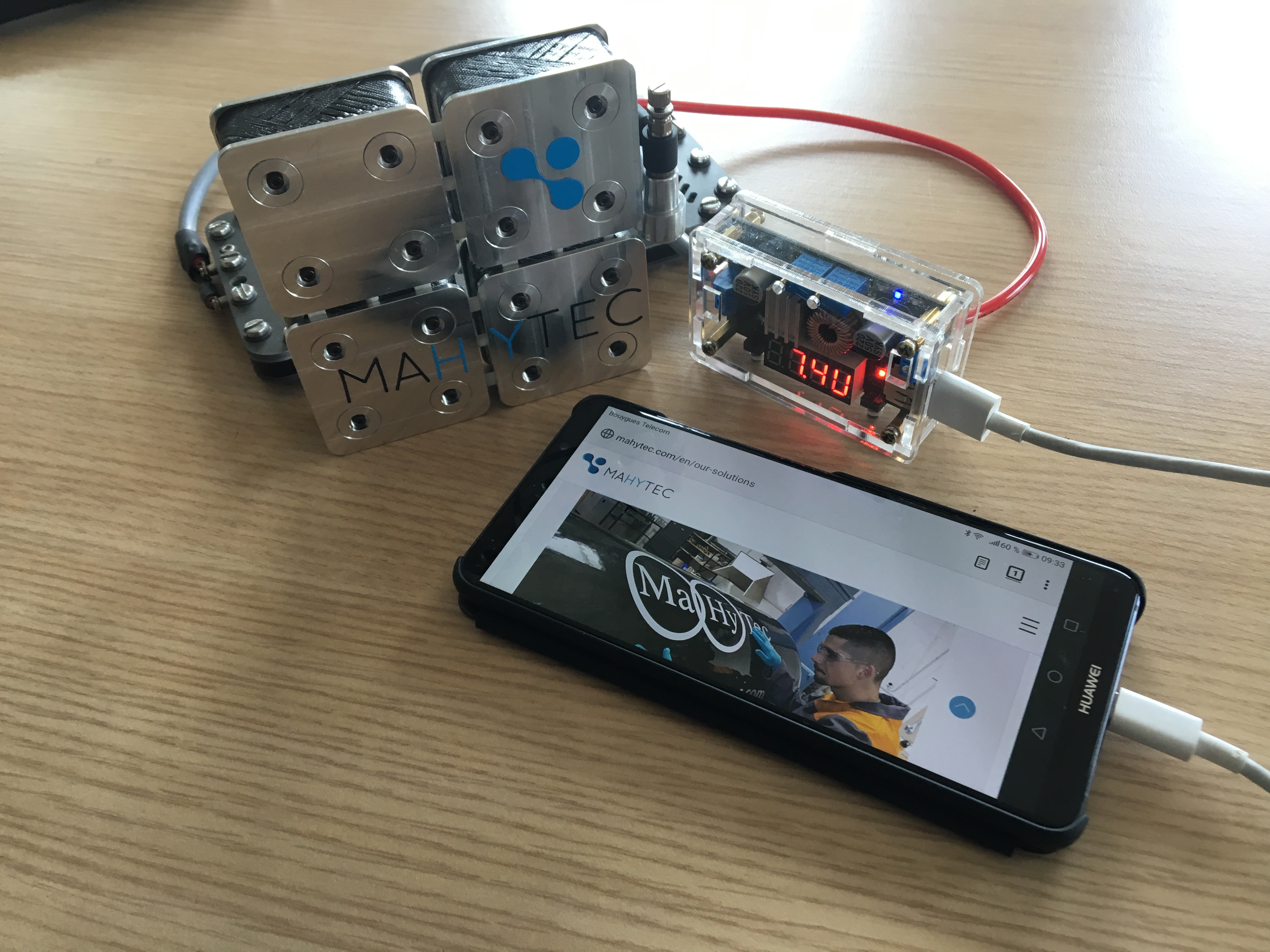

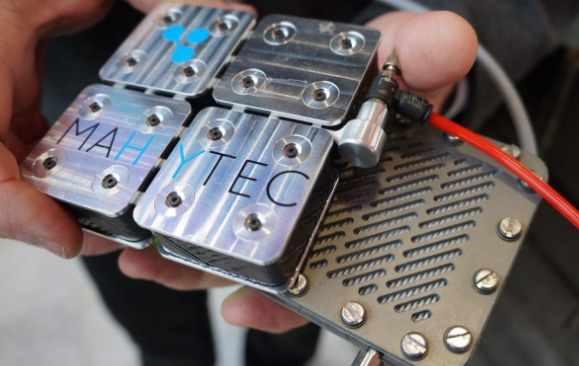

Product : Polymorphic storage

Polymorphic and portable hydride tank that can be brought anywhere.  Financial support from the DGA, project partners: Safran, UFC
SERVICE CONDITIONS
HYDROGEN STORAGE CAPACITY40NI
TEMPERATURE OF USEFrom 20°C to 40°C
TEMPERATURE OF STORAGEFrom 15°C to 40°C
MAXIMUM WORKING PRESSURE4barg (+/- 0.5bar)
MAXIMUM REFILLING PRESSURE10barg
MINIMUM REFILLING TEMPERATURE10°C
REFILLING TIME WITH COOLING≈ 1hour
DIMENSIONS
MASS OF EMPTY TANK472grams
DIMENSIONS (cm)10 X 10
MATERIALS
HYDRIDE TYPELaNi5
BODY MATERIALAluminum carbon fiber
Download the datasheet
Application: Morphy
The aim of the project is to supply energy to an infantryman. The combination of a hydrogen storage system and a fuel cell will help to deliver the energy while adapting to the needs of the infantryman.
More information
